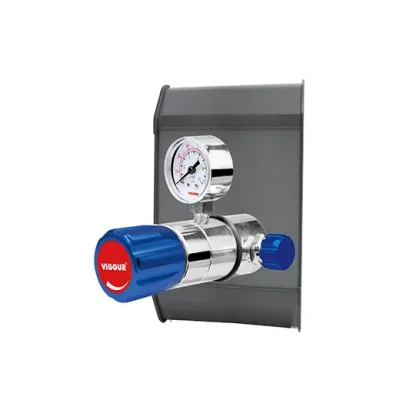

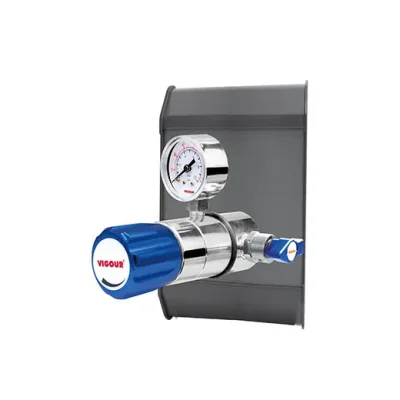

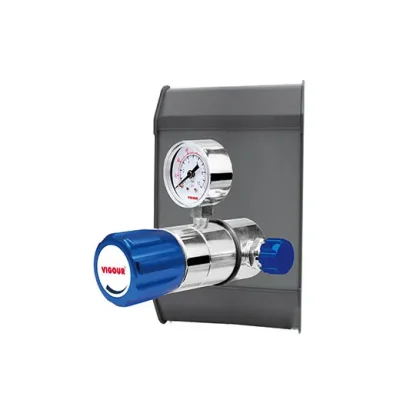

VSR-3TG Series

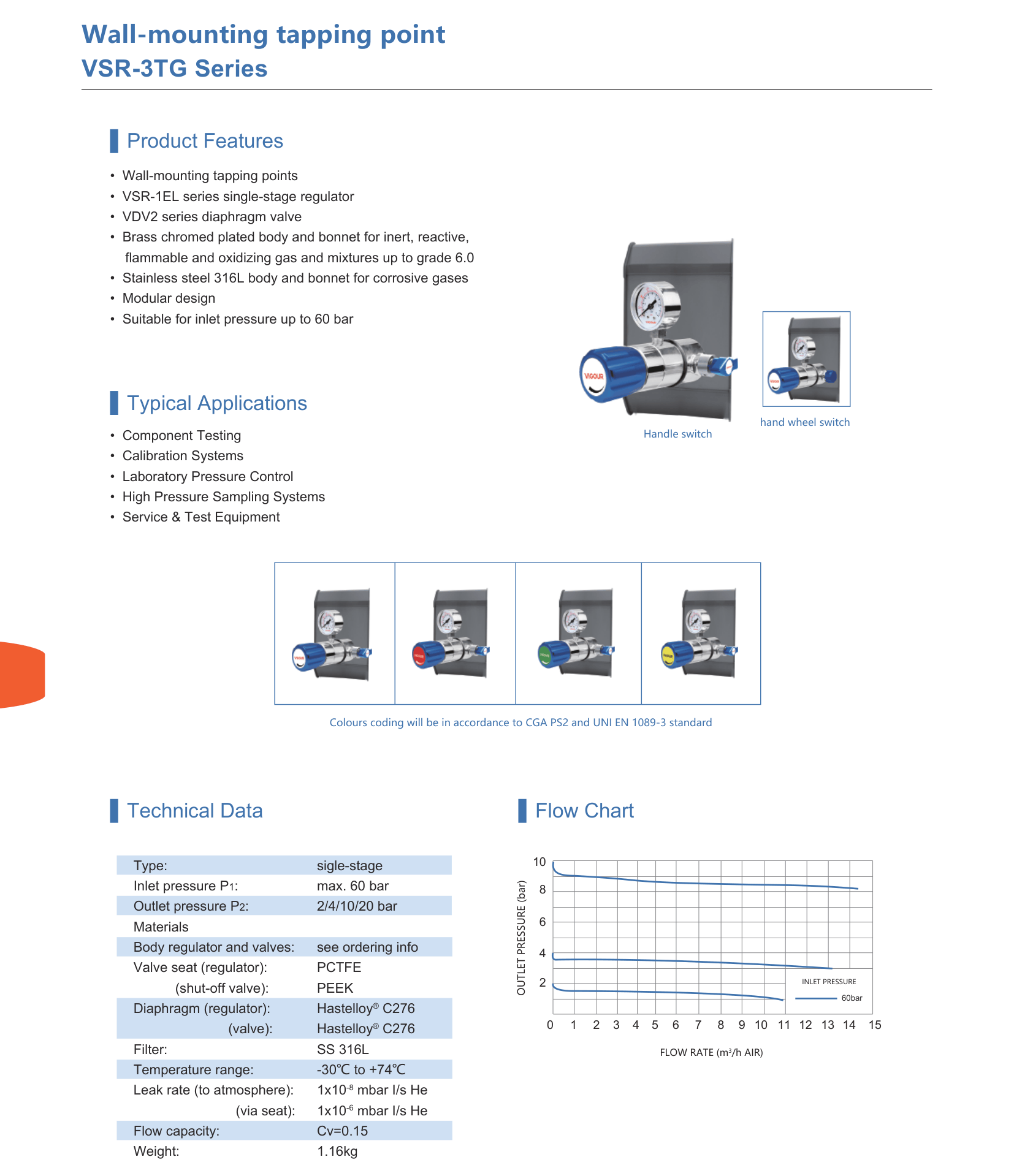

Product Features

• Wall-mounting tapping points
• VSR-1EL Series single-stage regulator

• VDV2 series diaphragm valve
• Brass chromed plated body and bonnet for inert, reactive, flammable and oxidizing gas and mixtures up to grade 6.0
• Stainless steel 316L body and bonnet for corrosive gases
• Modular design

• Suitable for inlet pressure up to 60 bar
• Tested for use with oxygen


Typical Applications

• Component Testing
• Calibration Systems
• Laboratory Pressure Control
• High Pressure Sampling Systems
• Service & Test Equipment
